Fuel Cell, Backup Light, & Completed Headers

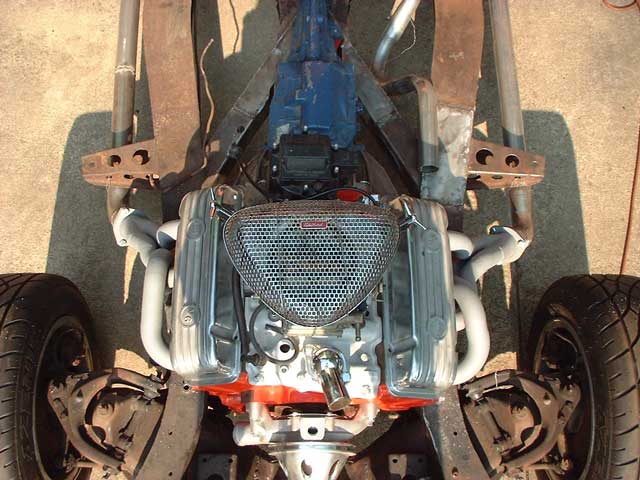

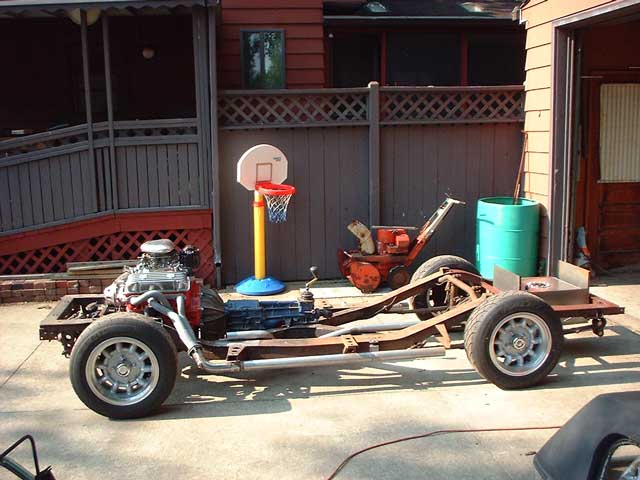

Now that the headers are done....... ( Note our other Chevy powered Datsun in the background)

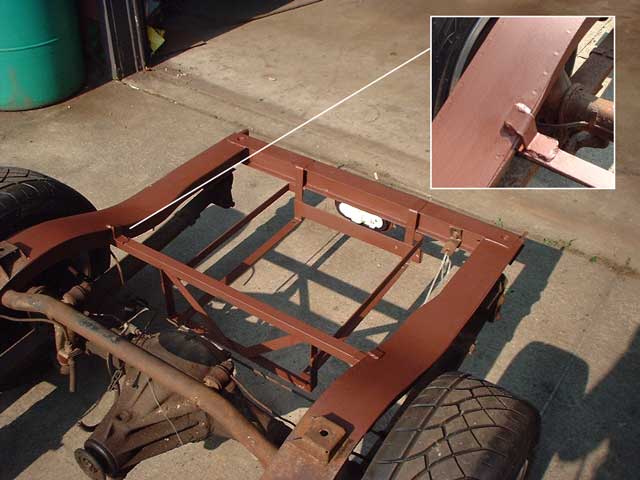

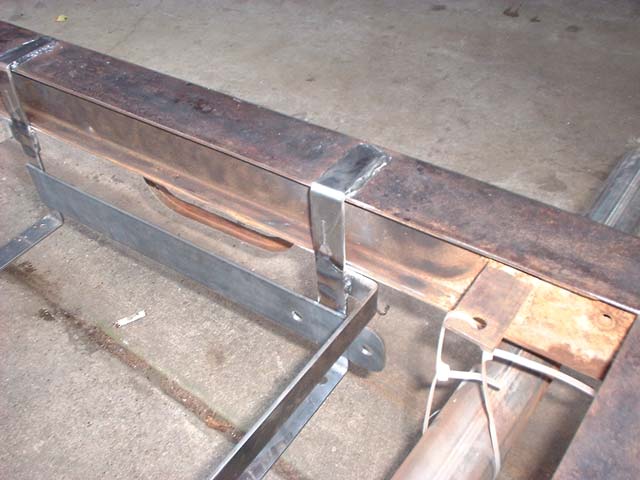

I started working on the fuel cell mount and backup light. Constructed a hanger frame for the cell which is welded to the frame. I added an additional "saddle" strap to the angle to reinforce where it is butt welded to the side of the frame rail.

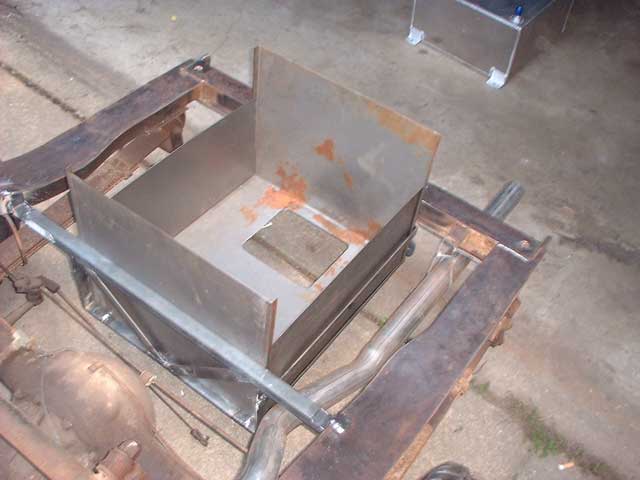

A sheet metal box fits inside the hanger,

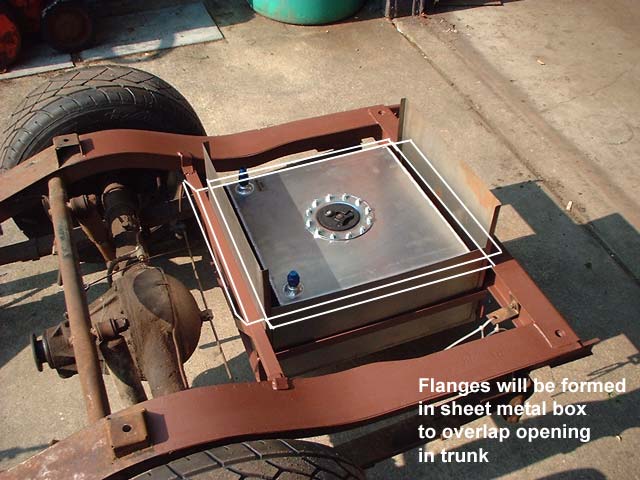

and will be flanged to be bolted in from the trunk side, sealing the cell from the elements.

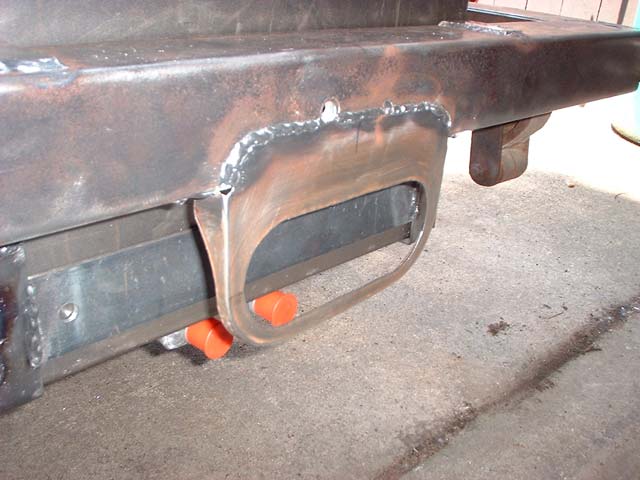

I made a bracket to mount a backup light to the rear frame rail. It was constructed using a hammerform to make the return flange that follows the outside contours. A hammerform is basically two hardwood patterns that you sandwhich the sheet metal blank between, allowing you to form the sides with a hammer and corking tools ( hardwood cut into a flat chisel-like shape)

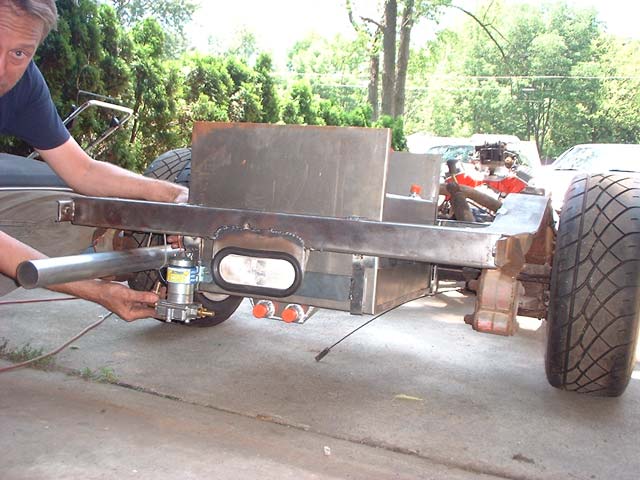

The backup light, fuel pump, and cell pick-ups will be visible under the rolled rear pan, framed nicely by the two Supertrapps.

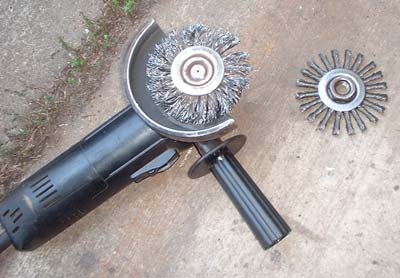

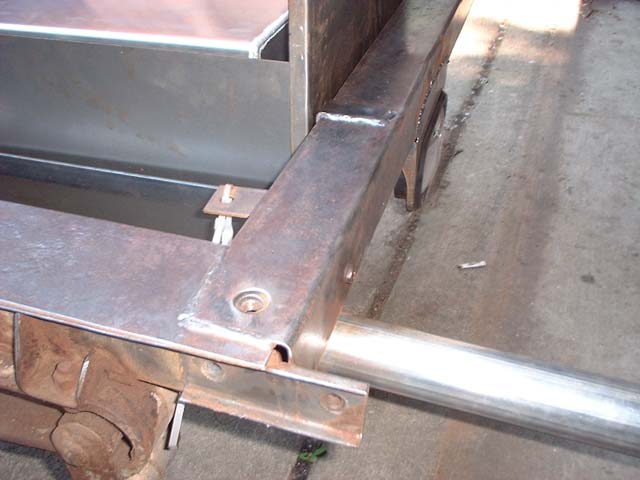

The frame cleaned up nicely using a grinder mounted brush,
and my "Ace" mechanic pulled double duty, wielding a mean paint brush!

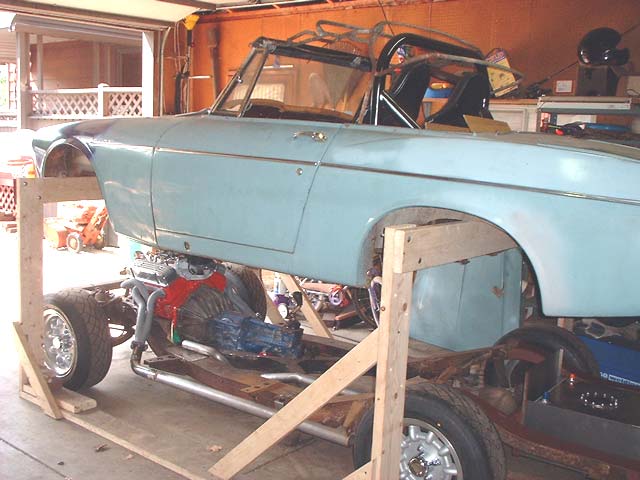

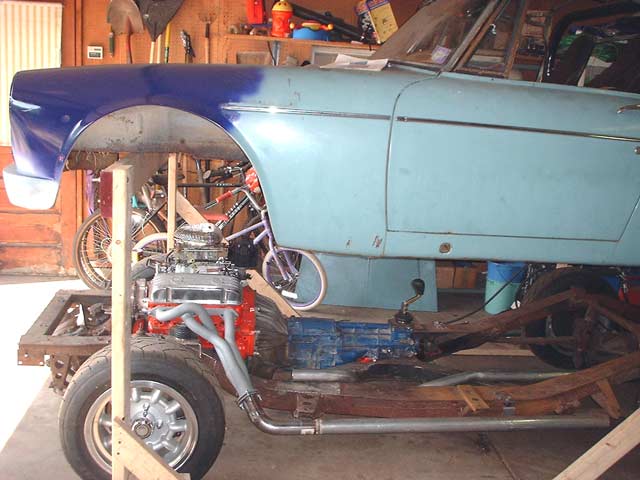

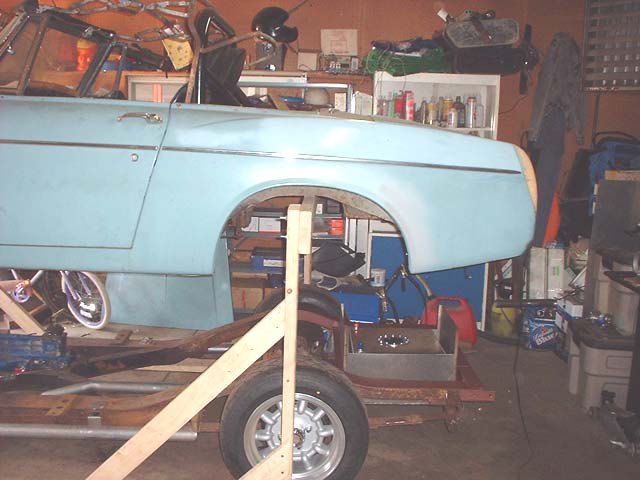

These shots are just neat, showing the relationship of everything...
